AMS-S5000 BMU
The AMS-S5000 is an intelligent industrial battery charger, expertly designed as an ideal solution for SCADA panels, data centers, DC motors, and telemetry systems. Supporting the Modbus protocol, it enables full control and management of the charging process. By utilizing linear current control for battery charging, it enhances charging performance, extends battery life, and reduces measurement noise. Additionally, features such as battery health estimation and proactive warning generation ensure stable operation even under the harshest industrial conditions.

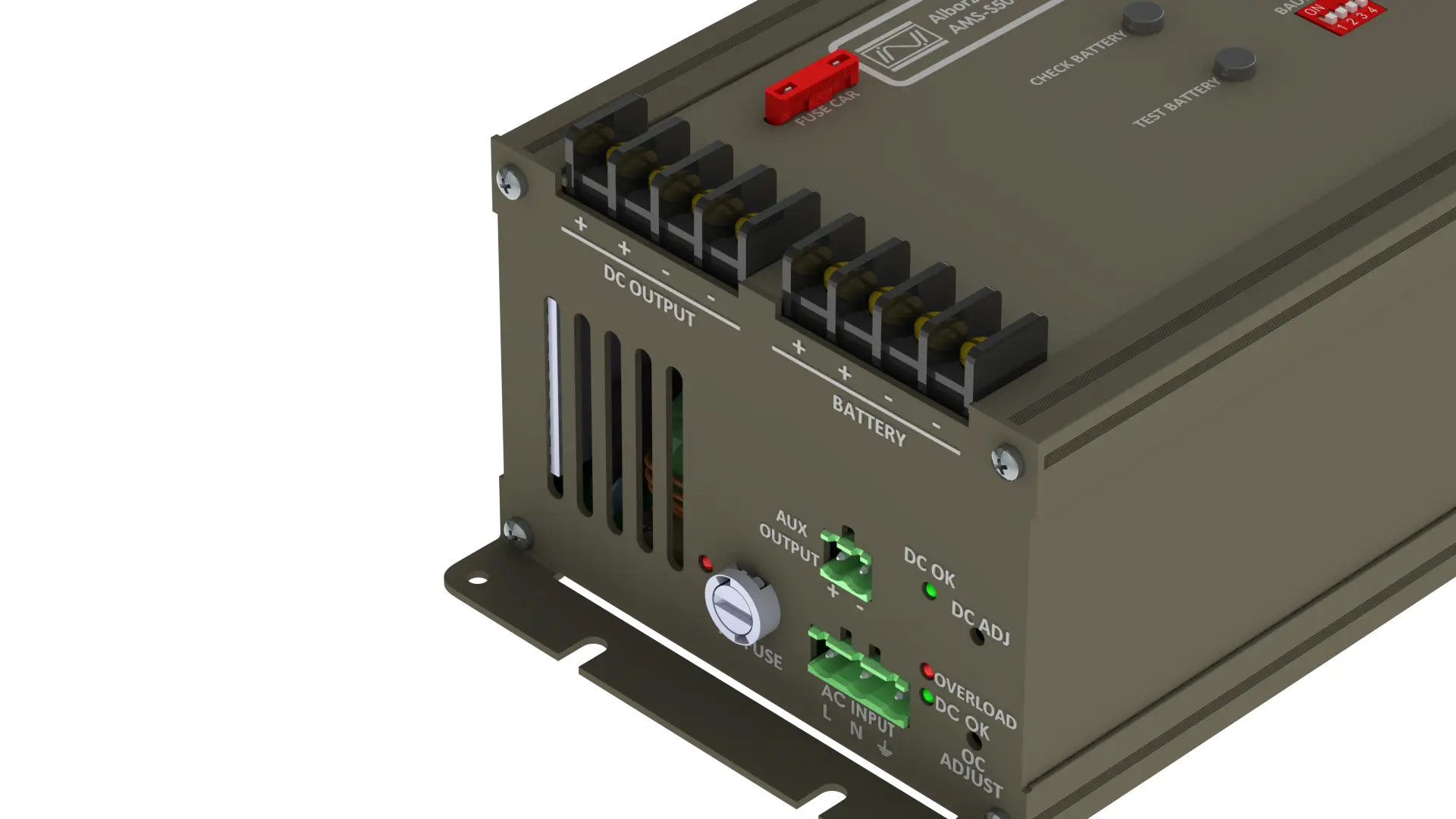

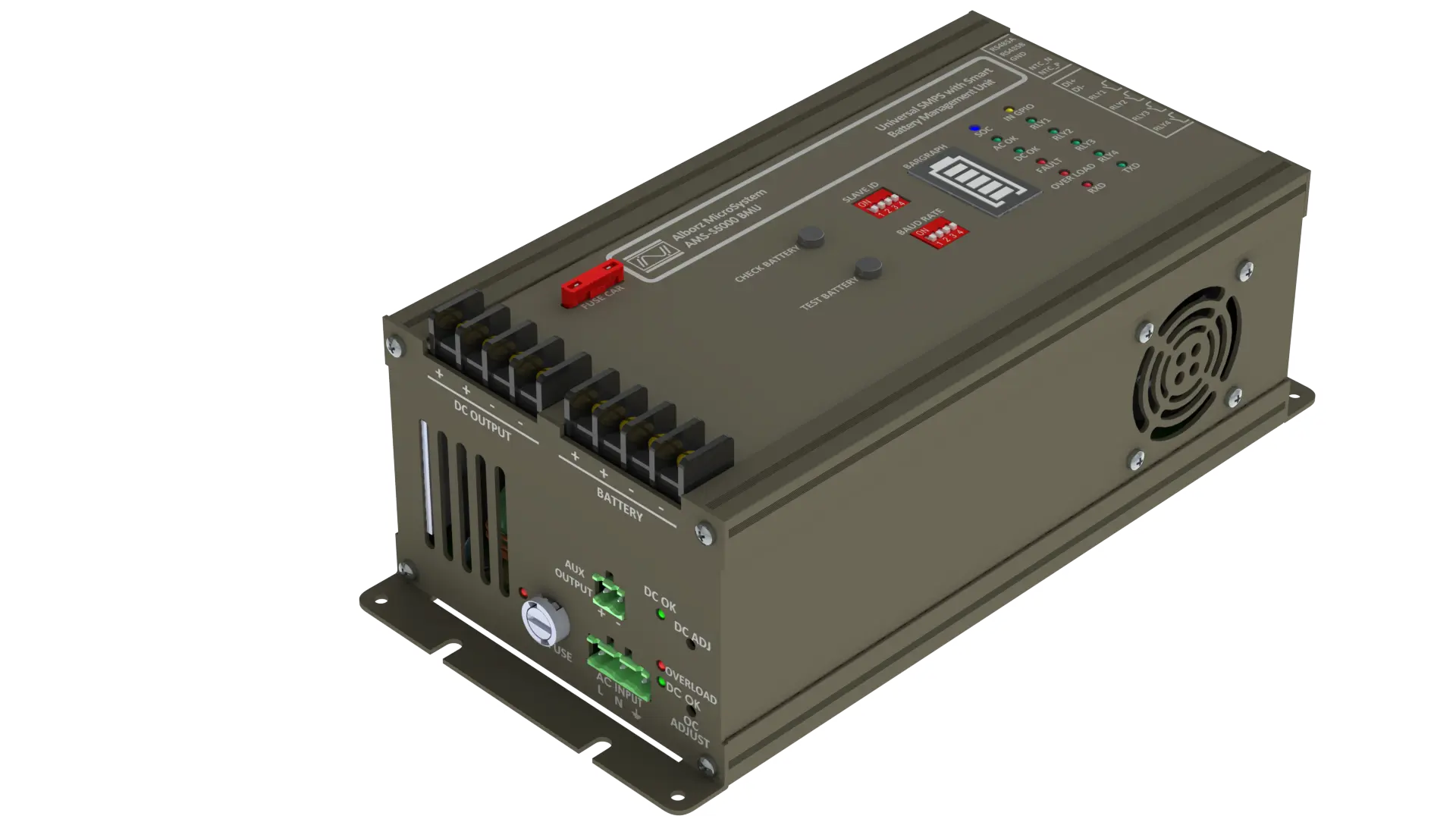

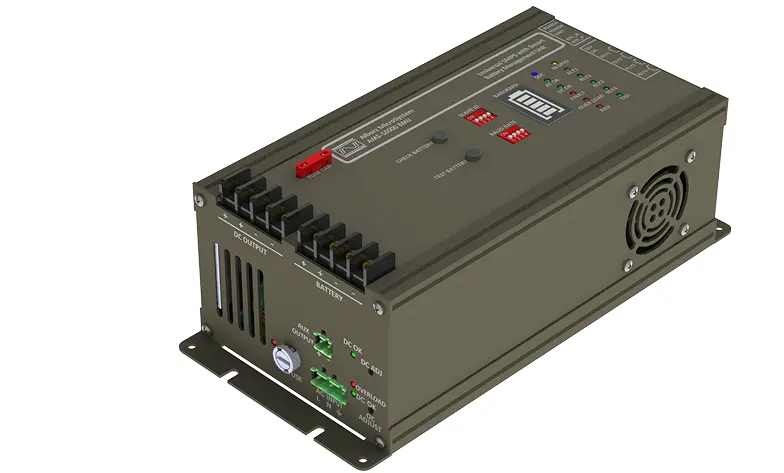

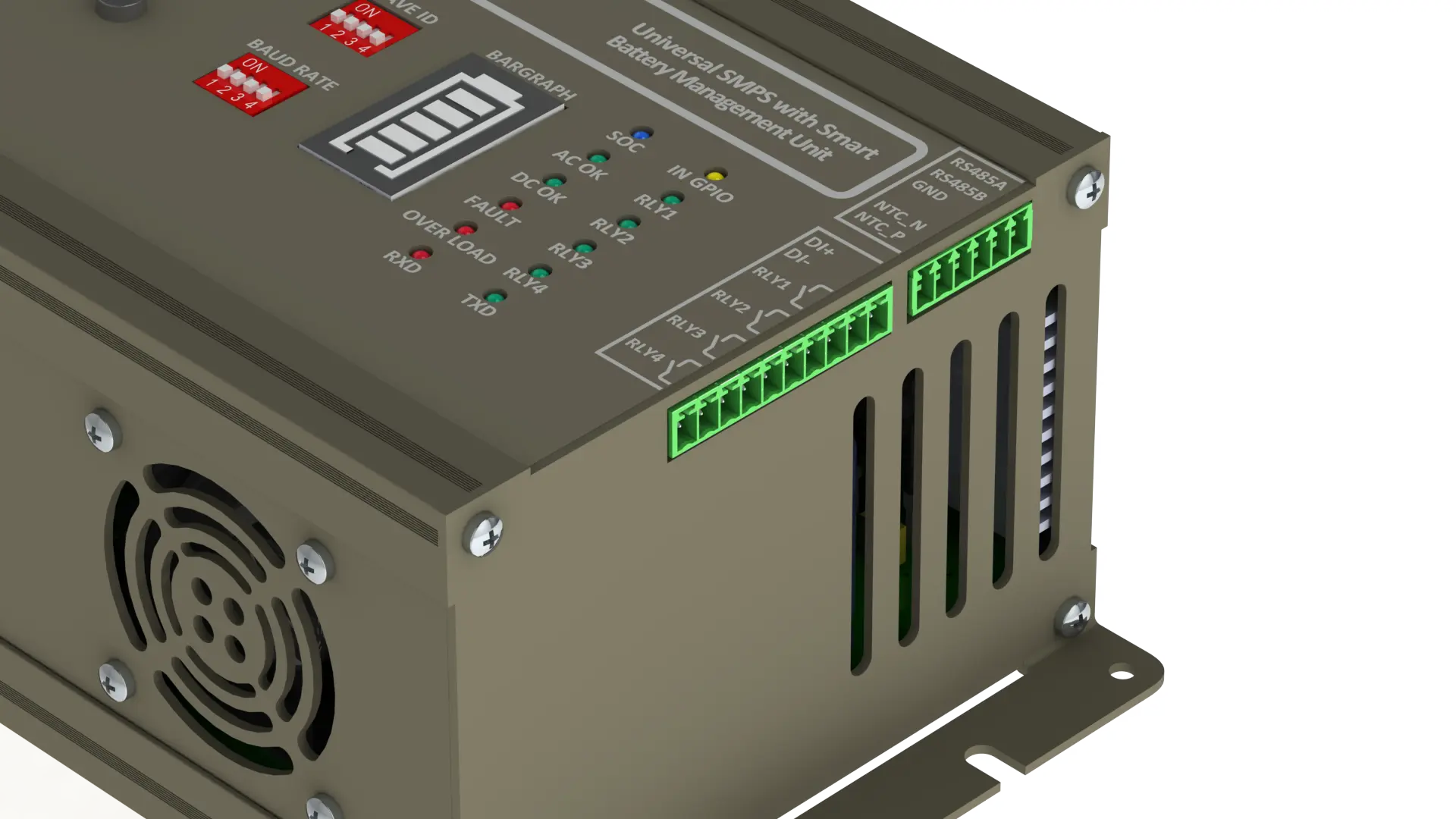

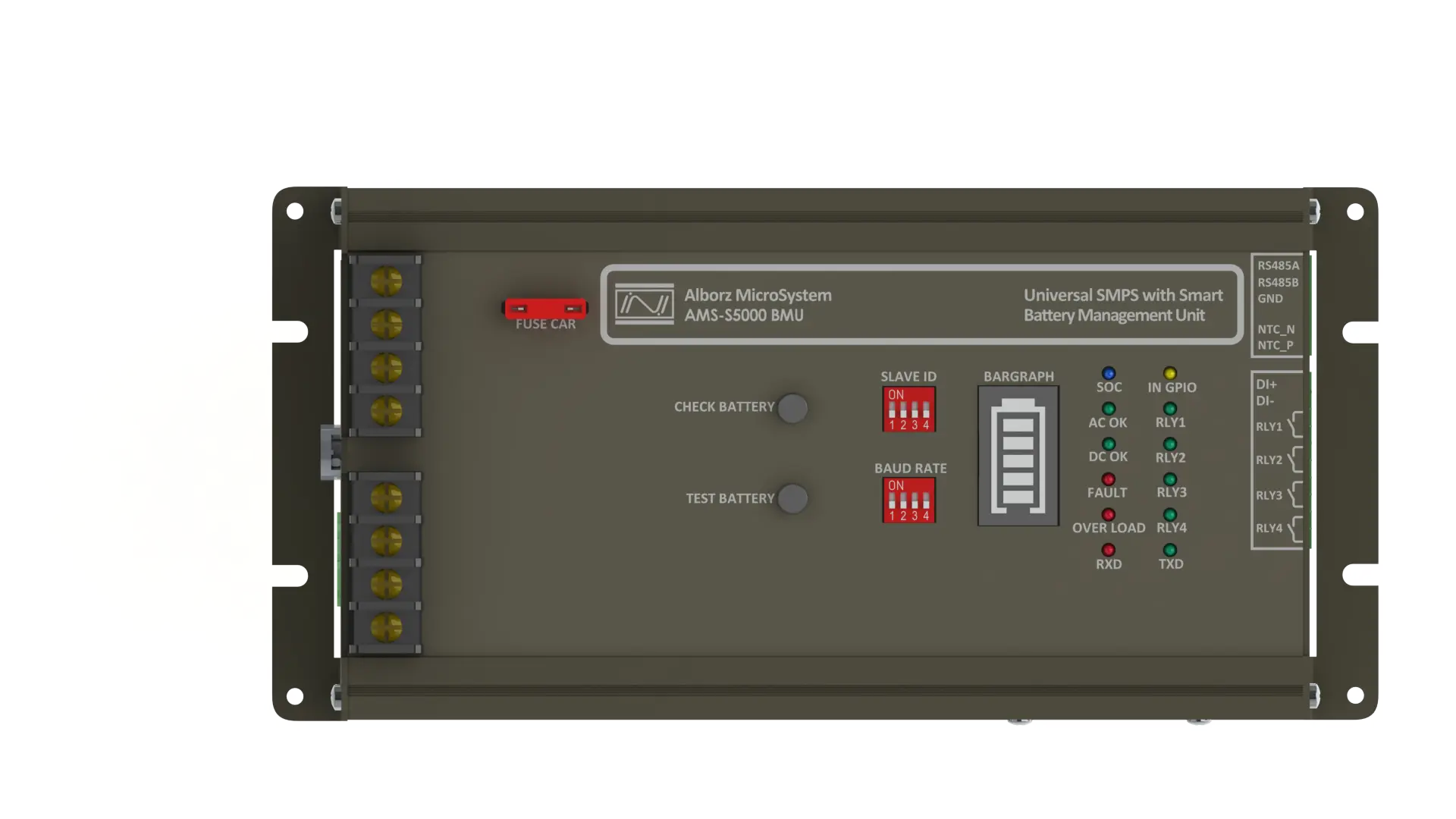

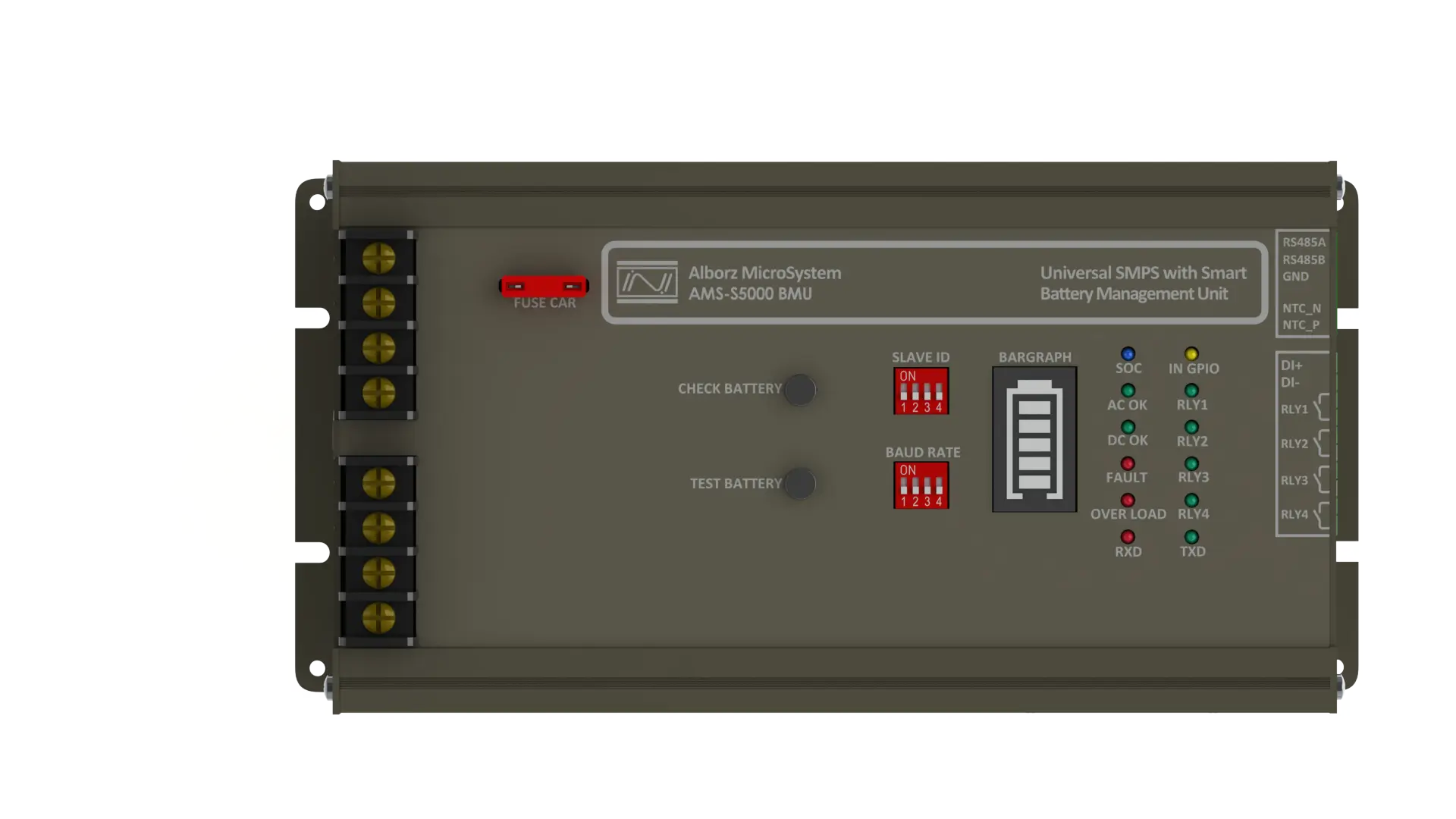

Gallery
Features
- Robust 24V or 48V output
- Adjustable output current limiter (Optional)
- Additional 12V or 24V isolated auxiliary output at 2.5A (Optional)
- ARM-Cortex based controller with linear charging method
- MODBUS protocol on the isolated RS-485 connection
- Support 15 slave id & 15 baud rate
- Reverse pole protection overall terminal
- Over-voltage protection overall terminal
- Over-current protection overall terminal
- Over-temperature protection of battery and system
- Battery temperature controlling with adjustable alarm
- Battery fails and battery cut-out detection
- Low battery detection with a configurable level
- In system voltage and current monitoring
- Condition visualization with LEDs and Bargraph
- Full isolation in the inputs and outputs
- Fan less ventilation & wide operating temperature
- The ability to set the duration of the battery test
- 4 programable relays with dry contact (Optional)
- The ability to set the duration of the battery test
- Error monitoring in MODBUS
- Sending test command and clear errors
- Line voltage measurement
- Measuring battery health
- Ability to adjust the output voltage
- Ability to adjust the value of short circuit current
Specifications
Power
- AC Input Voltage
165 to 260 VAC
- DC Output Voltage
27 VDC / 54 VDC
- Auxiliary Output Voltage
12 ± 0.2 VDC / 24 ± 0.2 VDC
- Typical Battery Voltage
24 Volt (2x12) / 48 Volt (4x12)
- Maximum Output Current (Temporary) 30 Second
30 Ampere DC (for 24 V) / 15 Ampere DC (for 48 V)
- Typical Output Power (Continues)
300 Watt
- Maximum Output Power (Instantaneous) 30 Second
600 Watt
- Maximum Auxiliary Output Current
2.5 Ampere DC
I/O
- Allowed Battery Capacity
5 Ampere DC (Dry Contact)
- Maximum Relay Contact Current
2.7 AH ~ 24 AH
- Battery Temperature Sensor
DS18B20
- MODBUS Physical Connection
RS-485
- MODBUS Baud Rate Range
800 ~ 921600
- MODBUS Slave ID Range
1 ~ 15
- Output Fuse Rating
30 A (Car type)
- Minimum Isolation Rating
2.5 kV
Battery
- Minimum Standup Time
24 Hours
- Maximum Charging Time
12 Hours
- Minimum On/Off Operations Executable
10 Times
- Minimum Durable Life
2 Years
Environmental
- Ambient Temperature
-20 ~ 100 °C
- Relative Humidity
0 ~ 95 %
Physical

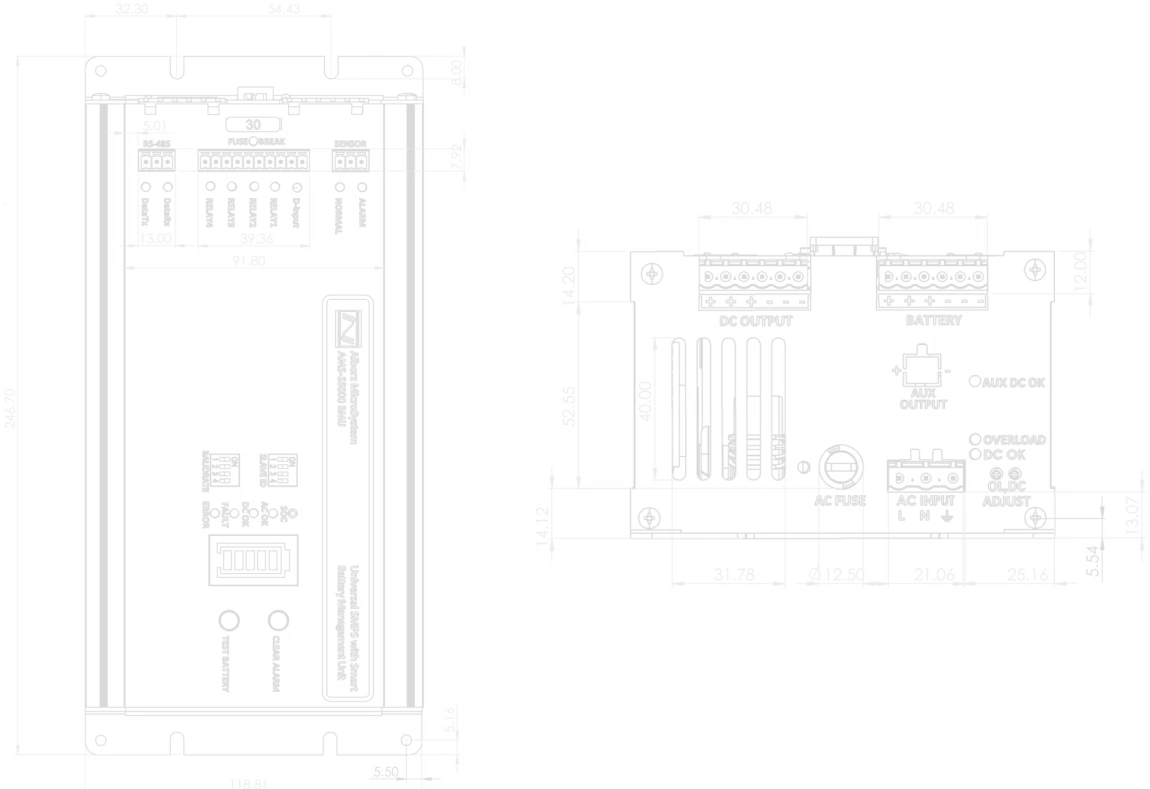

- Dimensions (W x H x D)
251 x 118 x 80 (mm)
- Chassis Material
Aluminum
- Mounting Forms
DIN Rails / Face Up / Wall Screw
