AMS-E3011
The AMS-E3011 is a low-power, industrial-grade Remote IO module designed to expand the input/output capabilities of the AMS-R3000 RTU. In addition to functioning as an I/O extension module for the RTU, it can also operate independently or as a standard RIO module. Communication is established via RS485 with support for the Modbus protocol, allowing seamless integration with other industrial equipment.
Equipped with an industrial-grade Cortex-M3 processor, high-precision digital and analog I/Os, and capable of transmitting data over distances of up to 900 meters, the AMS-E3011 is an ideal solution for a wide range of monitoring and control applications.

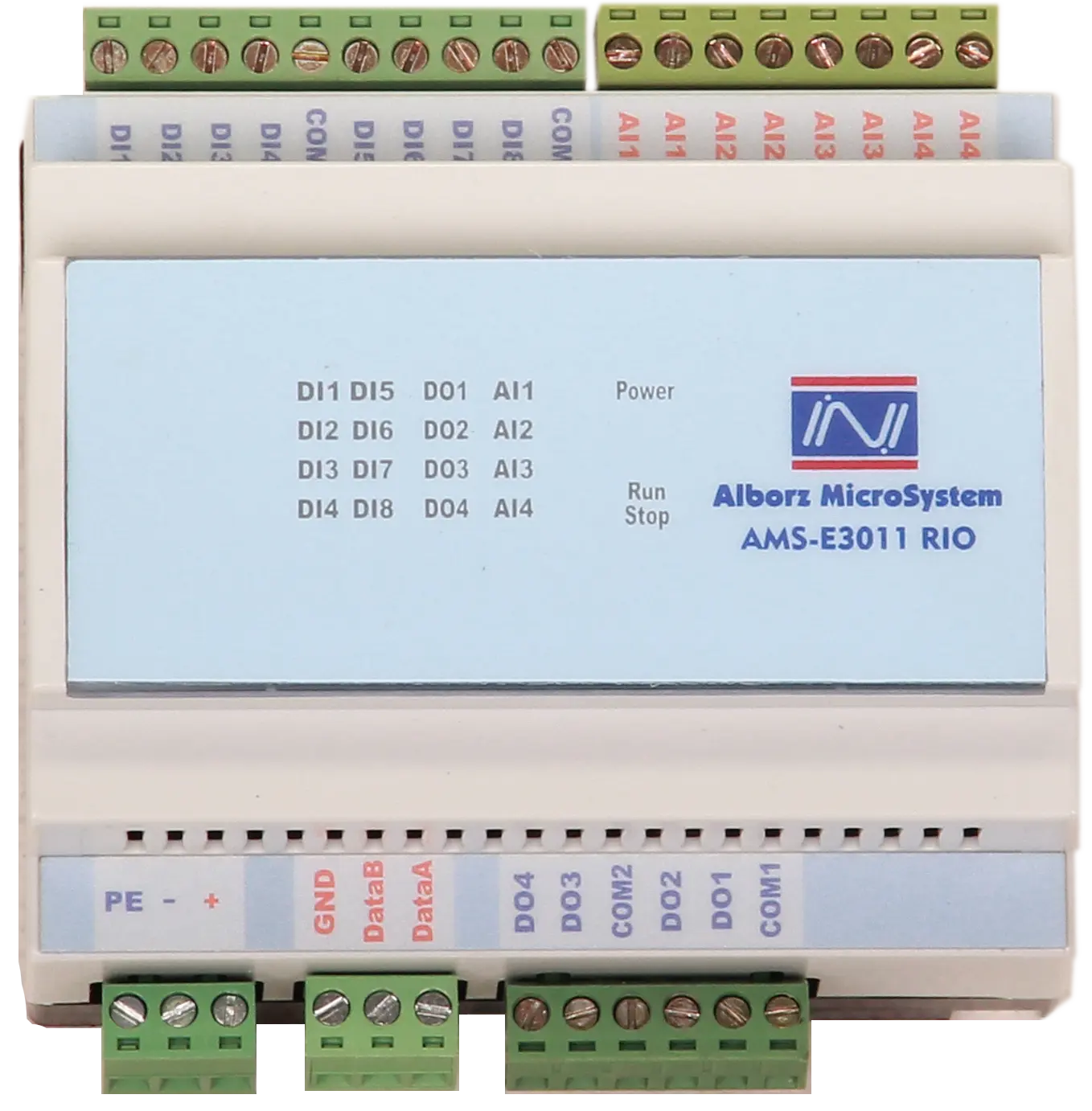

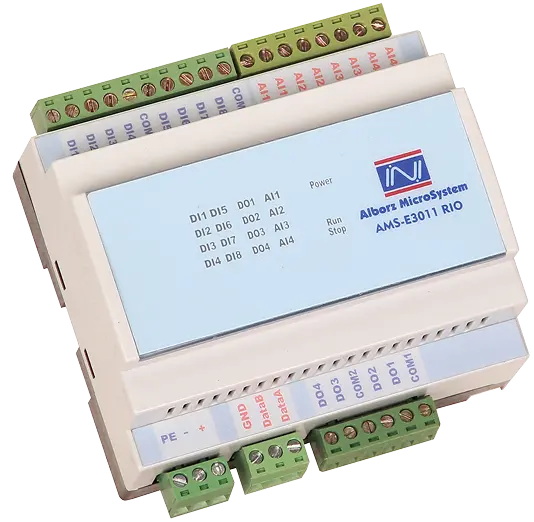

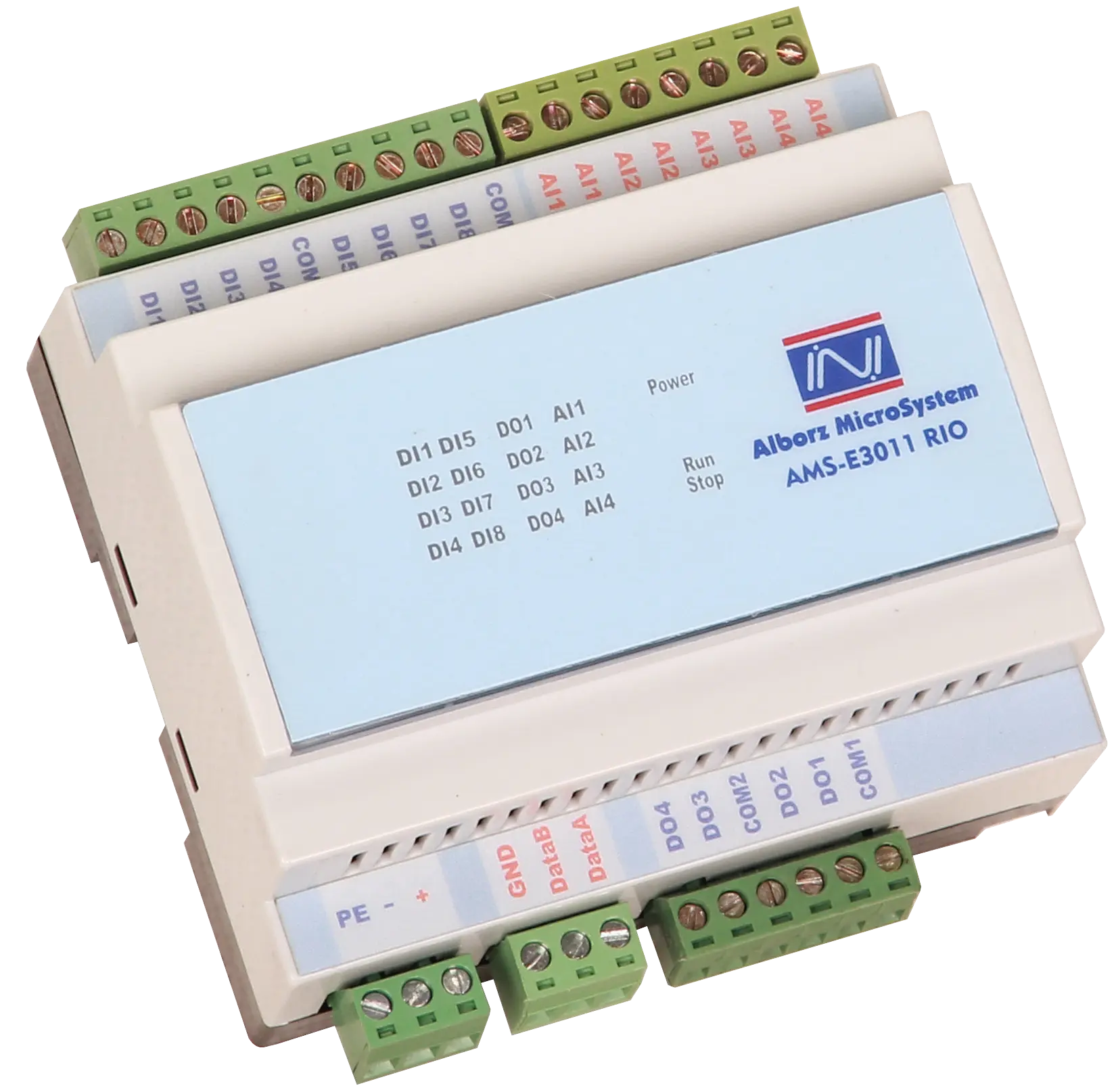

Gallery
Features
- Cortex-M3 industrial-grade CPU
- Low power consumption
- Support multiple industry standard
- Support multiple communication protocols
- 8x Digital Inputs
- 4x 1KHz Counter
- 4x Digital Output
- 4x Analog Inputs
Specifications
Power
- Input Power
+9-36 VDC (18-75 VDC available as a request)
- Power Consumption
1.5 W max
I/O
- Digital Input
8 Ch (+15~30VDC) Isolation 2.5KV RMS (8 Ch (+40~55VDC) available as a request)
- Digital Output
4 Ch (Relay 1A ~ 125VAC)
- Analog Input
4 Ch 12Bit (4-20mA / 0-20mA / 0-5V)
Communication
- Internal
RS485, RS232, CAN
- Protocols
Modbus Master/Slave
- Baud rate
600~921600 bps (Easy online setup with DIP-Switches)
- Slave ID
1-15 (Easy online setup with DIP-Switches)
Computer
- CPU
32-bit ARM Cortex-M3
Real Time Clock
- Internal RTC
Accuracy 5 sec in year @ 25’C
Physical

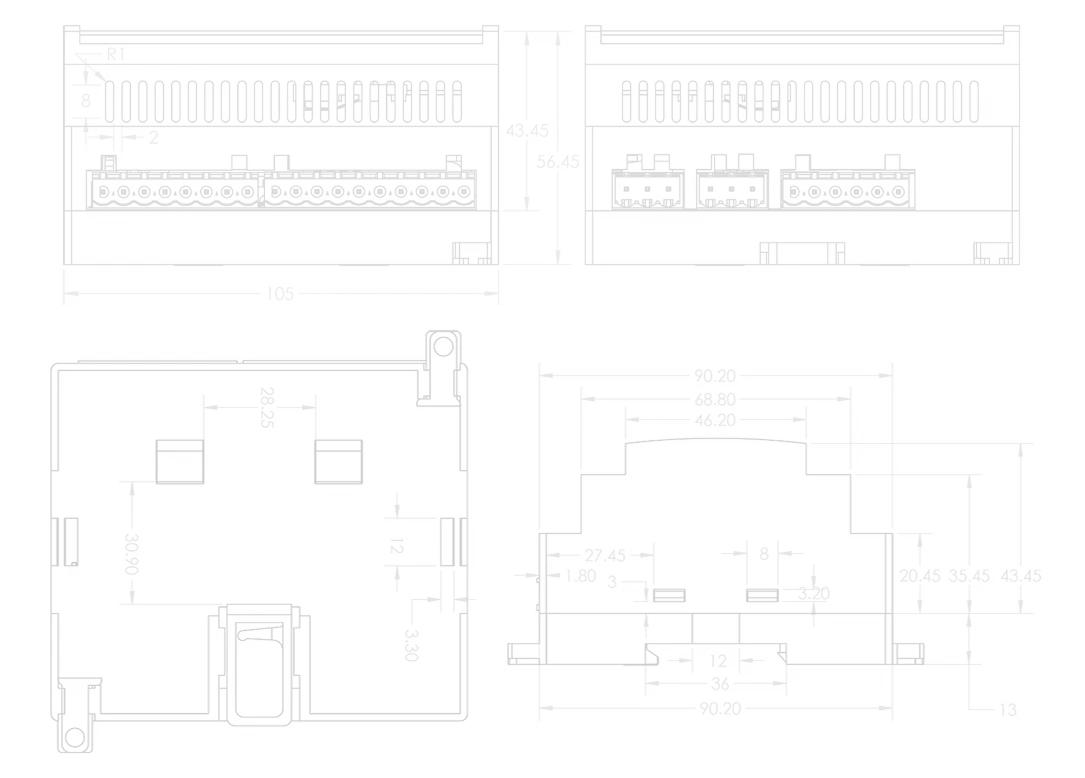

- Size (WxHxD)
105x91x58.4 mm (4.13x3.58x2.3 inches)
- Material
ABS UL-94-HB
Mounting
- DIN Rail mounting
Wall Mounting Available
Environment
- Temperature
-40°C ~ 85°C
- Humidity
0 ~ 95 % non-condensing
Standards
- EMC
EPIL & AUT Certified
- IEC61000-4-2
- IEC61000-4-3
- IEC61000-4-4
- IEC61000-4-5
- IEC61000-4-6
- IEC61000-4-8
