AMS-5206

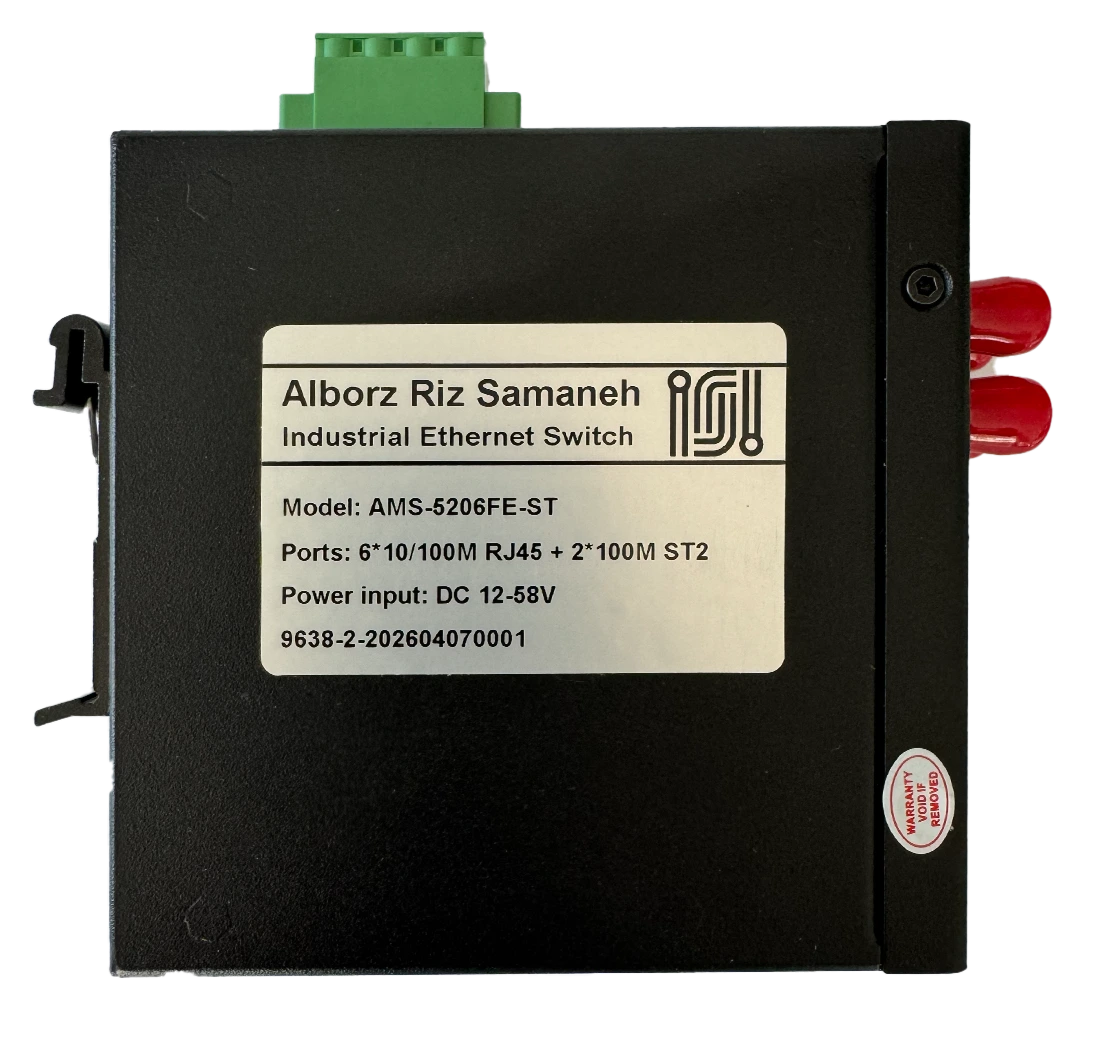

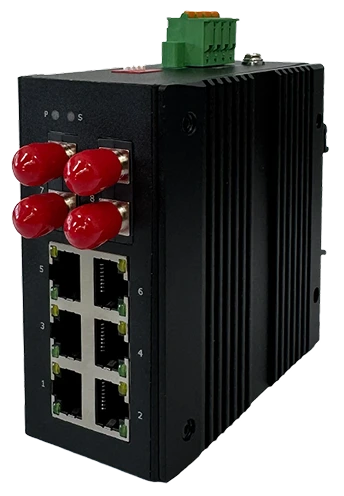

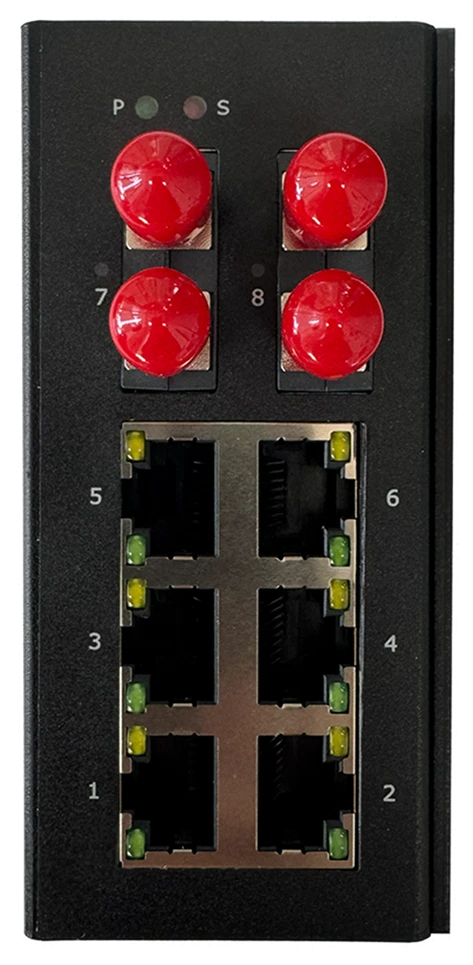

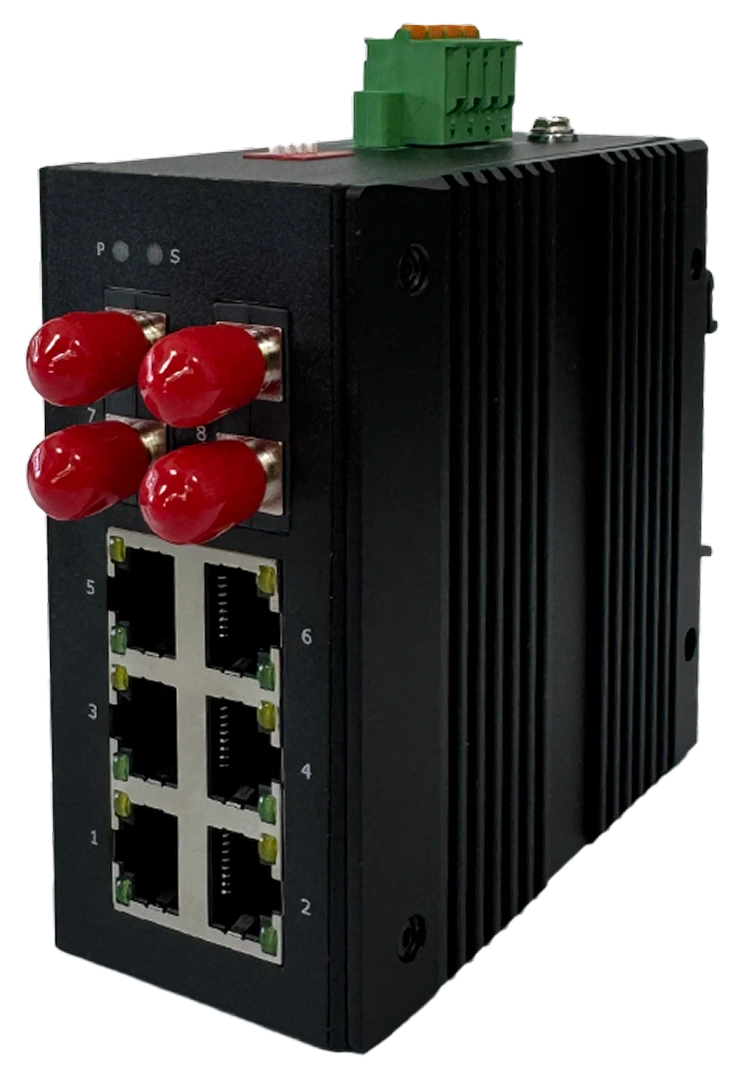

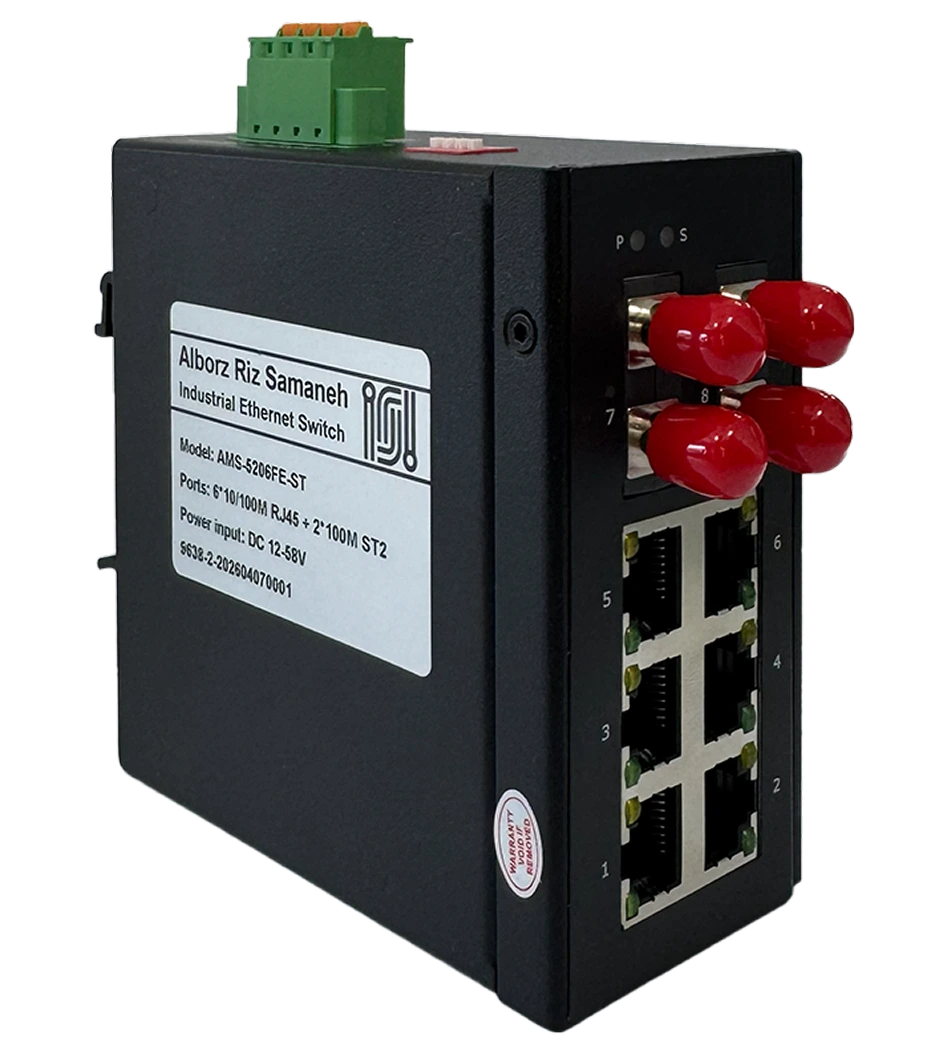

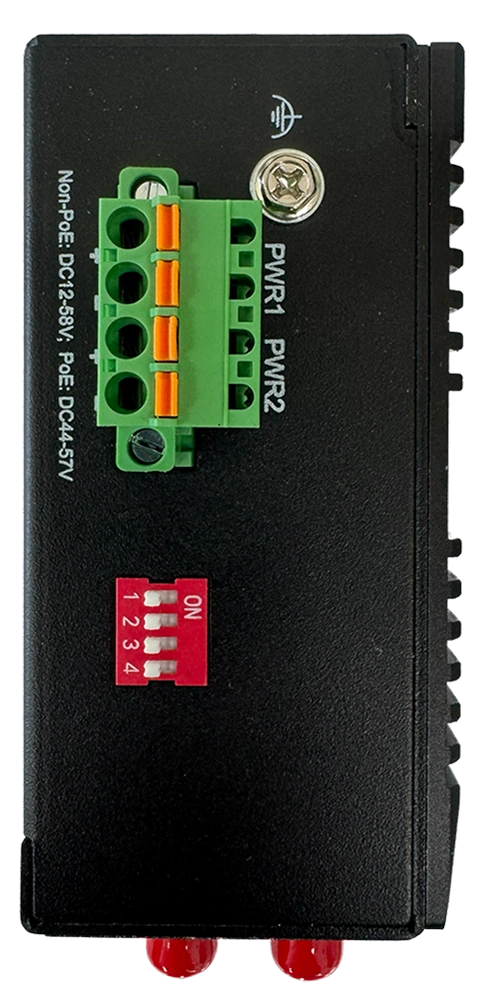

This industrial Ethernet switch features six 10/100Base-TX ports and two 100Base-FX fiber optic ports, making it well-suited for deployment in harsh industrial environments. It supports advanced features such as port isolation, flow control, Quality of Service (QoS), and Broadcast Storm Control, all of which can be easily configured via DIP switches.
Designed for reliable operation under demanding conditions, the switch offers a wide 12–58 VDC power input range, reverse polarity and overvoltage protection, an IP40-rated rugged enclosure and an operating temperature range of -40°C to +75°C. The AMS-3204FE provides stable and dependable network connectivity for a wide range of applications, including industrial manufacturing, transportation systems, oil and gas facilities, chemical industries and industrial automation.
Gallery
Features
- 5-port industrial Ethernet switches (AMS-H5405 / AMS-H5514 / AMS-H5614)
- Compliant with IEEE 802.3 and 802.3u/x standards
- Supports 10/100 Mbps full/half-duplex and MDI/MDI-X auto-sensing
- Wide operating temperature range: -20°C to +75°C
- AMS-H5514 includes one PoE port (18VDC, 20W) for devices like IP cameras and wireless modems
- PoE port protected against lightning and electromagnetic interference
- AMS-H5405 / AMS-H5614: accepts 12/24VDC input (range: 9–55VDC)
- AMS-H5514: accepts 24VDC input (range: 20–55VDC)
- AMS-H5614 includes 100BaseFX fiber port (ST/SC connector) for long-distance transmission up to 40 km
Specifications
Power
- Input Range
- AMS-H5405/5614
Wide range 9-40 VDC (9-55 VDC is Available)
- AMS-H5514
Wide range 20-40 VDC (20-55 VDC is Available)
- AMS-H5405/5614
- Power Consumption
Less than 3 watt without POE
Technology
- Standards
- IEEE 802.3 for 10BaseT
- IEEE 802.3u for 100BaseT(X) and 100BaseFX
- IEEE 802.3x for Flow Control
Switch Properties
- MAC Table Size
1 K
- Maximum frame length
1536 Bytes
- RJ45 Ports
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, auto MDI/MDI-X connection
- Fiber Ports
100BaseFX ports (SC/ST connector, Multi-mode, Single-mode)
Environmental Characteristic
- Operating Temperature
-20 to 75°C (-20 to 167°F)
- Storage Temperature
-40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
- Telecommunication Network Standard
ETSI EN 300 386
- Electromagnetic Compatibility (EMC)
- IEC 61000-4-2
(ESD Contact: 6 kV; Air: 8 kV
- IEC 61000-4-3
(Level 2
- IEC 61000-4-4
EFT Power 2kV, 1kV Signal
- IEC 61000-4-5
Surge 2kV
- IEC 61000-4-6
Conducted Disturbances 10V
- IEC 61000-4-8
PFMF 3A/m
- EN55022(CISPR 22)
less than 40dBuB
- IEC 61000-4-2
Physical
- Hosing
Aluminum (A6065)
- Mounting
DIN-Rail
- Dimension
33 x 83 x 124.5 mm (1.3 x 3.25 x 4.9 in)
- Color
Pure Black Anodized
Order Code
- AMS-H5405-ES
5 Port Ethernet Switch
- AMS-H5514-POES
5 Port Ethernet Switch which one of them is 18V POE injector
- AMS-H5614-ES-SC
5 Port Ethernet Switch with one Fiber Optic SC connection
- AMS-H5614-ES-ST
5 Port Ethernet Switch with one Fiber Optic ST connection
Accessory
- Industrial AC/DC power supply
24V,800mA (-20 to 80°C)
- Commercial AC/DC power supply
24V,800mA (0 to 70°C)
- Cat6 flat 1m cable
- Cat6 flat 2m cable
- SC/SC Fiber Optic cable
- ST/ST Fiber Optic cable
Modules
-
AMS-H5405:5 port 10/100 baseT(X) Ethernet Switch
-
AMS-H5514:4 port 10/100 baseT(X) Ethernet Switch + One port POE
-
AMS-H5614:4 port 10/100 baseT(X) Ethernet Switch + One port 100BaseFX (multi/single-mode, SC or ST connector)
