AMS-Logic-Designer
The AMS-Logic-Designer software is an advanced environment developed for programming, configuring, and implementing control logic for Remote Terminal Units (RTUs). Built on the international IEC 61131-3 standard, it supports programming languages such as LD (Ladder Diagram), FBD (Function Block Diagram), and ST (Structured Text). The software includes features like defining Retain variables to preserve values during power outages, and tools for creating Watch Tables, Force Tables, and Data Blocks. With support for standard function blocks and the ability to define custom blocks, AMS-Logic-Designer meets the diverse needs of industrial automation projects, from simple to complex. Its compatibility for exchanging functions and blocks with other standard environments like Siemens TIA Portal makes it a comprehensive, flexible, and advanced solution for industrial automation development.

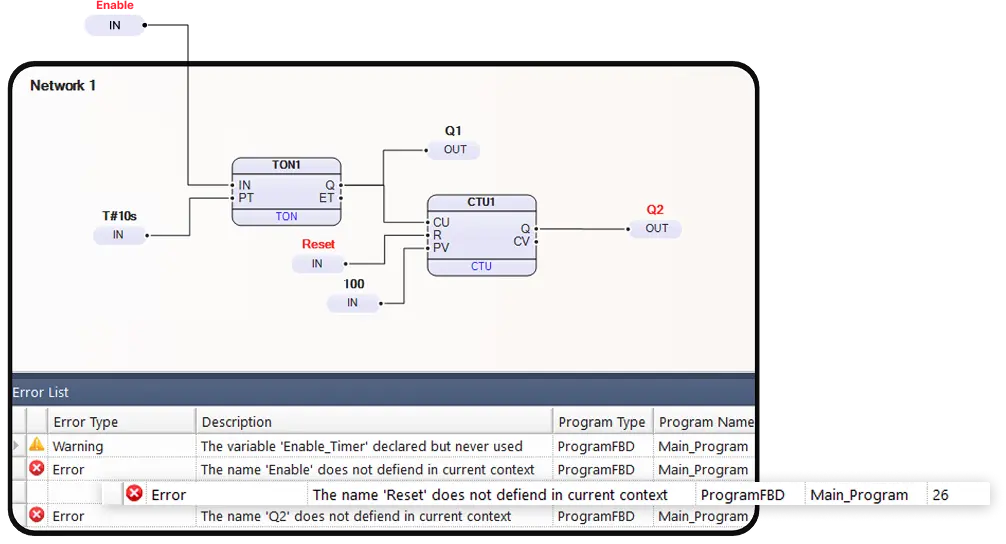

An interactive environment for analyzing and tracking warnings and errors
With this feature, the user becomes aware of warnings and errors during program development and can easily trace and correct them. Additionally, it increases the user's accuracy during the development process and prevents the recurrence of such errors in other parts of the program. Therefore, the speed of the debugging process in complex projects will significantly increase.

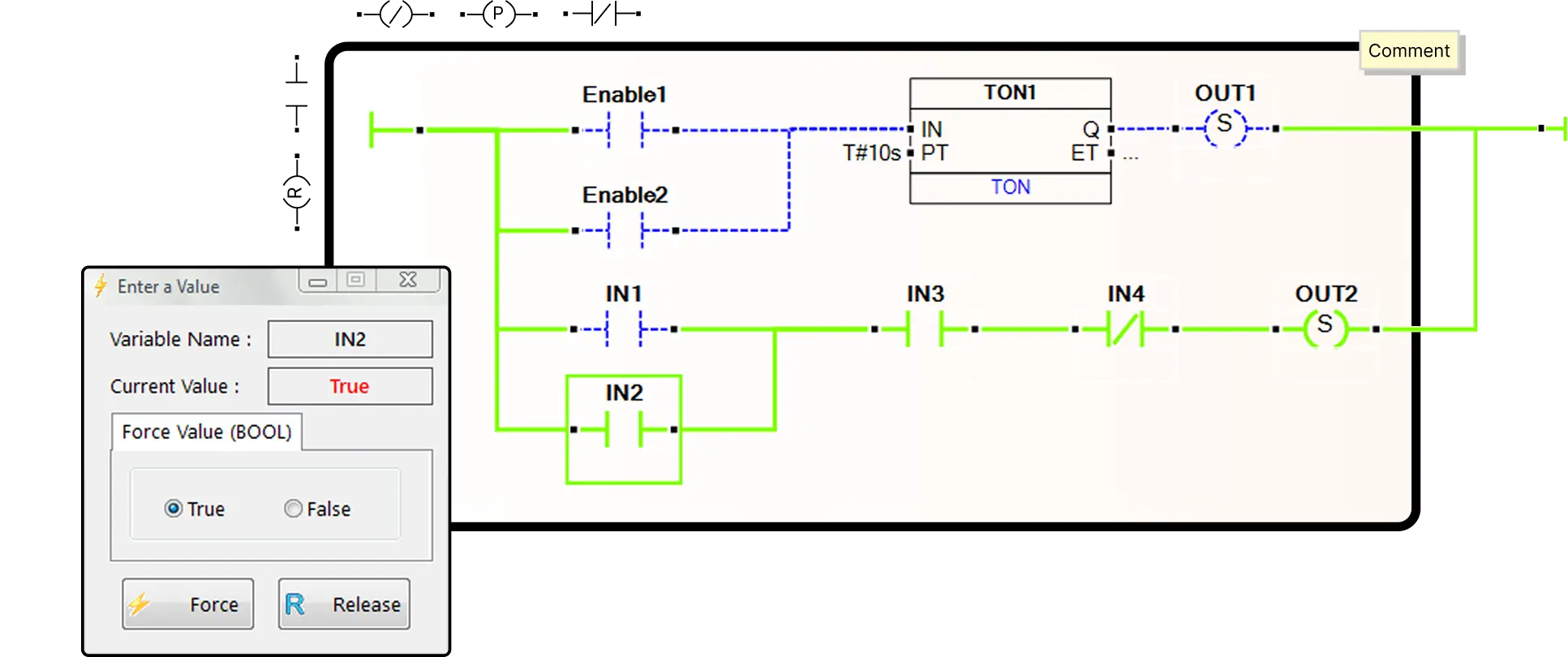

Real-time data display
Using this feature, the user can view the current values of all program variables and, for evaluating a part of the control system program, forcibly assign a variable to a temporary custom value. This feature increases the speed of program debugging and significantly reduces project commissioning time.

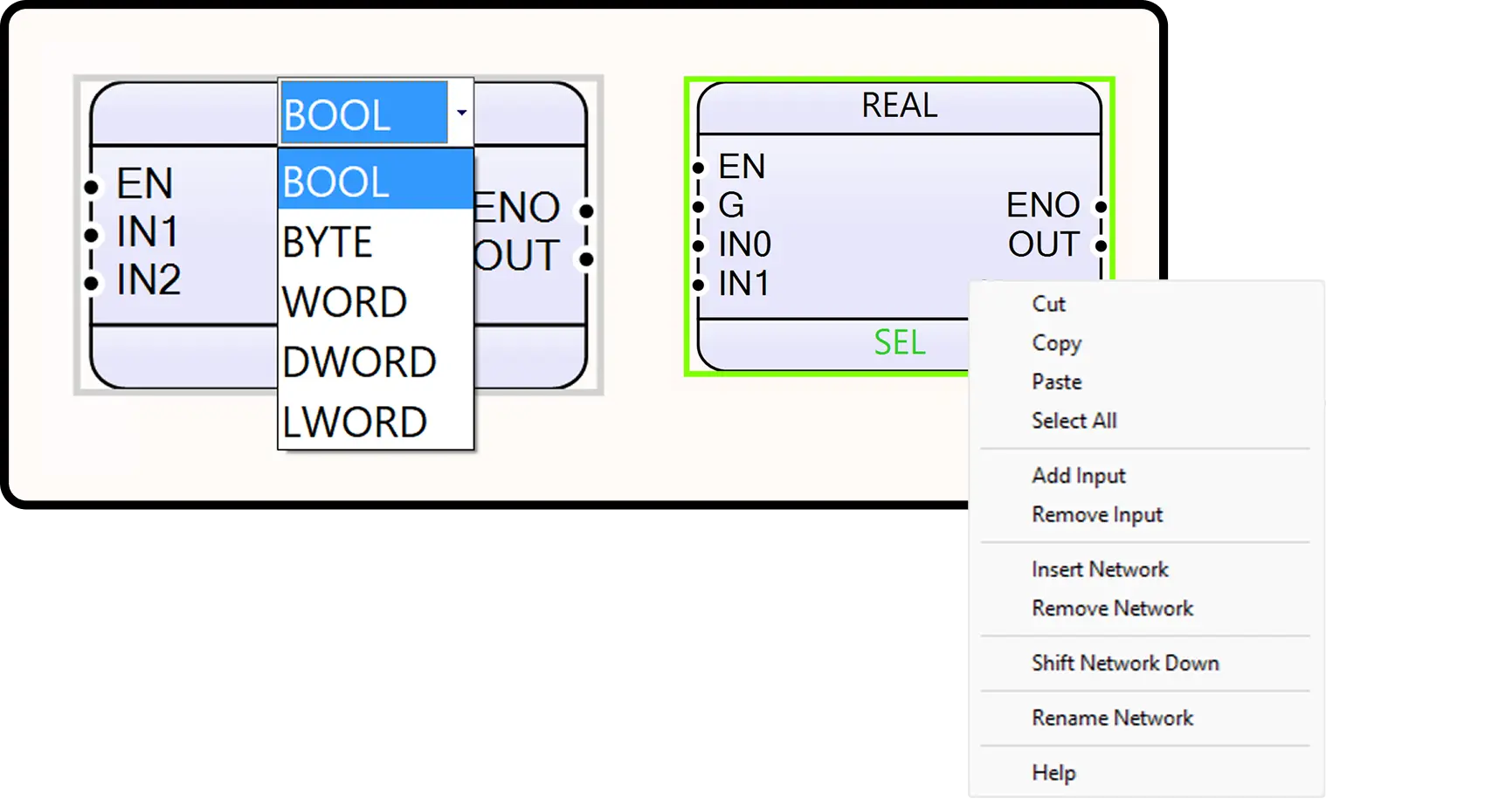

Fast development in graphical programming using LD and FBD languages
In most industrial control projects, during program development, the user needs to add or remove an input/output from defined or standard functions, or modify the output data type of a function without altering the program. With this feature, the user can easily update inputs, outputs, and data types of functions with a simple click, thereby accelerating the development process.

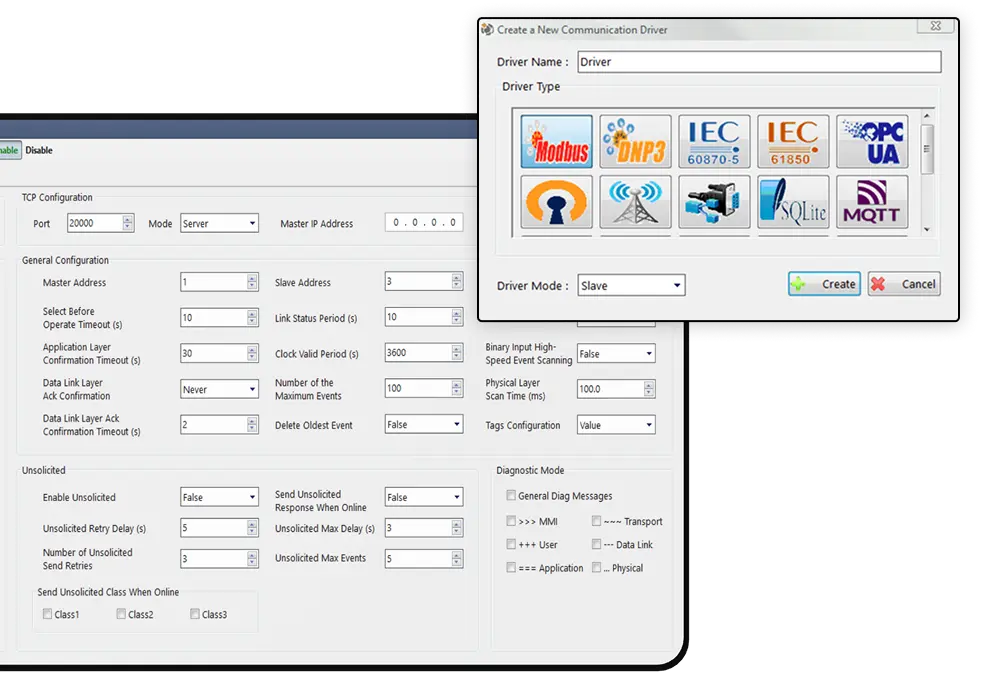

Standard communication drivers
Using this feature, the user can utilize advanced graphical interfaces to configure various types of standard communication protocols such as DNP3.0, IEC60870, IEC61850, OPCUA, SQLite, TDS, S7Comm, OpenVPN, Modbus, etc., in both Master/Client and Slave/Server modes. It is worth noting that the parameters and various types of variables related to communication protocols are defined in this section, and the user can easily define and configure different communication segments through graphical interfaces.
More features
Supported Programming Languages
Supports Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST)
Standard Program Organization Units
Utilizes standard Program Organization Units (POUs), including Programs, Function Blocks, and Functions
Data Type Compatibility
Fully compatible with standard data types
Power Failure Variable Retention
Retain feature for declaring variables and protecting values during power failures
Project Simulation/Emulation
Full project Simulation on a single PC
Program dividing
Divides the program into sections for better readability and faster development
Bookmarks and navigations
Marks key sections for quick navigation, improving development speed
Graphical program by LD and FBD
Easily updates function inputs/outputs to streamline development
Comment in program
Adds comments and temporarily removes code for easier diagnostics
Parallel programming
Supports multi-display development for faster debugging
Enhanced Security
Restricts access, logs user actions, and registers devices for security
Control Tools
create Data Blocks, Watch Tables, and Force Tables for efficient monitoring
