AMS-H5xxx

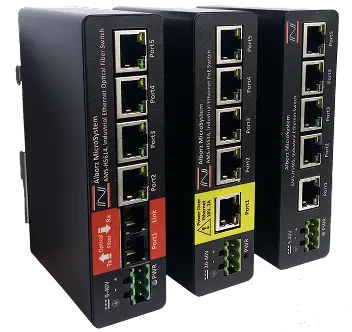

The AMS-H5xxx series of industrial Ethernet switches, including models AMS-H5405, AMS-H5514, and AMS-H5614, provides a reliable solution for establishing stable and secure Ethernet networks in harsh operating environments. These switches support IEEE standards, offer full/half-duplex operation, and include auto MDI/MDI-X detection, ensuring fast and dependable communication between industrial network devices. The AMS-H5514 model features a built-in PoE port, allowing direct power delivery to devices such as surveillance cameras and wireless modems. The AMS-H5614 model is equipped with a 100BaseFX fiber optic port, making it ideal for long-distance data transmission up to 40 kilometers.

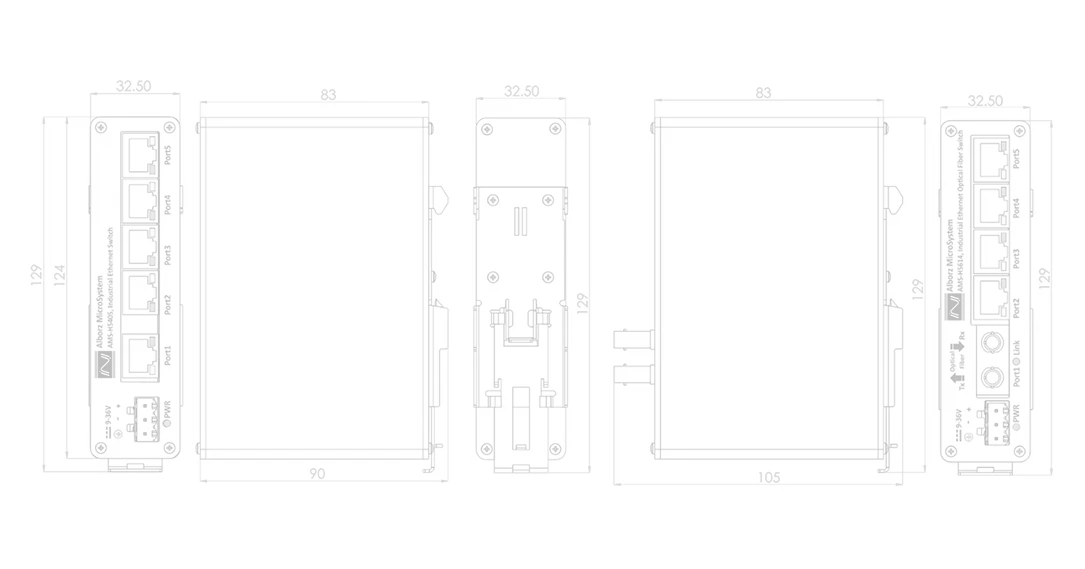

AMS-R3000 DimensionsAMS-R3000 RTU

Gallery

Gallery
  • Gallery

Features

  • 5-port industrial Ethernet switches (AMS-H5405 / AMS-H5514 / AMS-H5614)
  • Compliant with IEEE 802.3 and 802.3u/x standards
  • Supports 10/100 Mbps full/half-duplex and MDI/MDI-X auto-sensing
  • Wide operating temperature range: -20°C to +75°C
  • AMS-H5514 includes one PoE port (18VDC, 20W) for devices like IP cameras and wireless modems
  • PoE port protected against lightning and electromagnetic interference
  • AMS-H5405 / AMS-H5614: accepts 12/24VDC input (range: 9–55VDC)
  • AMS-H5514: accepts 24VDC input (range: 20–55VDC)
  • AMS-H5614 includes 100BaseFX fiber port (ST/SC connector) for long-distance transmission up to 40 km

Specifications

  • Power
    • Input Range

      • AMS-H5405/5614

        Wide range 9-40 VDC (9-55 VDC is Available)

      • AMS-H5514

        Wide range 20-40 VDC (20-55 VDC is Available)

    • Power Consumption

      Less than 3 watt without POE

  • Technology
    • Standards

      • IEEE 802.3 for 10BaseT

      • IEEE 802.3u for 100BaseT(X) and 100BaseFX

      • IEEE 802.3x for Flow Control

  • Switch Properties
    • MAC Table Size

      1 K

    • Maximum frame length

      1536 Bytes

    • RJ45 Ports

      10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, auto MDI/MDI-X connection

    • Fiber Ports

      100BaseFX ports (SC/ST connector, Multi-mode, Single-mode)

  • Environmental Characteristic
    • Operating Temperature

      -20 to 75°C (-20 to 167°F)

    • Storage Temperature

      -40 to 85°C (-40 to 185°F)

    • Ambient Relative Humidity

      5 to 95% (non-condensing)

  • Standards and Certifications
    • Telecommunication Network Standard

      ETSI EN 300 386

    • Electromagnetic Compatibility (EMC)

      • IEC61000-4-2

        (ESD Contact: 6 kV; Air: 8 kV

      • IEC61000-4-3

        (Level 2

      • IEC61000-4-4

        EFT Power 2kV, 1kV Signal

      • IEC61000-4-5

        Surge 2kV

      • IEC61000-4-6

        Conducted Disturbances 10V

      • IEC61000-4-8

        PFMF 3A/m

      • EN55022(CISPR 22)

        less than 40dBuB

  • Physical
    • Hosing

      Aluminum (A6065)

    • Mounting

      DIN-Rail

    • Dimension

      33 x 83 x 124.5 mm (1.3 x 3.25 x 4.9 in)

    • Color

      Pure Black Anodized

  • Order Code
    • AMS-H5405-ES

      5 Port Ethernet Switch

    • AMS-H5514-POES

      5 Port Ethernet Switch which one of them is 18V POE injector

    • AMS-H5614-ES-SC

      5 Port Ethernet Switch with one Fiber Optic SC connection

    • AMS-H5614-ES-ST

      5 Port Ethernet Switch with one Fiber Optic ST connection

  • Accessory
    • Industrial AC/DC power supply

      24V,800mA (-20 to 80°C)

    • Commercial AC/DC power supply

      24V,800mA (0 to 70°C)

    • Cat6 flat 1m cable

    • Cat6 flat 2m cable

    • SC/SC Fiber Optic cable

    • ST/ST Fiber Optic cable

Modules

  • AMS-H5405:5 port 10/100 baseT(X) Ethernet Switch

  • AMS-H5514:4 port 10/100 baseT(X) Ethernet Switch + One port POE

  • AMS-H5614:4 port 10/100 baseT(X) Ethernet Switch + One port 100BaseFX (multi/single-mode, SC or ST connector)
